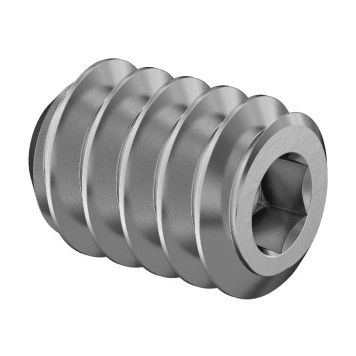

Tungsten Electrode Set Screw for AMI 8 & 9-Series Weld Heads

Name: Tungsten Electrode Set Screw for AMI 8 & 9-Series Weld Heads
SKU: 102512
Price: 2.00 USD
Availability: InStock

SKU: 102512MPN: AMI9TESS

Keep your orbital welding equipment operating smoothly with our replacement rotor set screws, designed to firmly clamp the tungsten welding electrode inside the holder. Cleanly threaded to match standard dimensional clearances, these socket set screws feature a dependable cup point design to ensure a tight grip on the electrode without slipping during automatic rotation cycles. They serve as direct replacements for standard hardware found in AMI Tungsten Extender Holders and Electrode Rotor Assemblies.

$2.00

Units

In Stock

Quantity

remove

add

Product Details

Tungsten Electrode Set Screws for AMI Orbital Fusion Heads

Maintain consistent arc gaps and dependable weld repeatability with our replacement set screws. Built to serve as direct replacements for standard Arc Machines, Inc. (AMI) hardware, these 18-8 Stainless Steel fasteners ensure your tungsten electrode remains firmly locked inside the rotor assembly throughout the automated welding cycle.

Reliable Clamping for Orbital Hardware

Automated tube welding setups require reliable electrode security to prevent rotation issues. These replacement clamping screws feature a deep socket pocket that accepts a standard 1/16" hex key wrench, giving operators the positive engagement needed to apply uniform torque against the tungsten electrode. This reduces common field problems like slipping, arc gap drift, or thread seizing within the housing components.

Key Features:

Secure Electrode Holding: Cup point tip design bites cleanly into the tungsten welding electrode to prevent shifting during rotation.
Standard Hex Drive: Features a 1/16" socket drive pocket to ensure easy adjustments with standard shop allen wrenches or torque tools.
Standard Fit: Sized to thread smoothly into standard rotor assemblies and tungsten extenders with no modifications required.
Flush Seating: Seats properly within the internal gear components to eliminate the risk of rotational interference inside the closed weld head chamber.

Weld Head Compatibility & Component Matching

Our replacement clamping fasteners meet precise industrial hardware standards and seamlessly integrate with your existing equipment files.

Fits AMI 9 series weld heads like the 9-1500, 9-2500, 9-3500, 9-4500, 9-7500.

Fits AMI 8 series weld heads 8-2000, 8-4000.

IMPORTANT COMPATIBILITY NOTE: This does not fit the AMI 9-750 weld head model. Please verify your specific model number prior to ordering.

Disclaimer: We supply high-quality replacement fasteners compatible with original equipment manufacturer (OEM) hardware. Use of original manufacturer names, model designations, or part numbers is for cross-reference and compatibility verification only.
