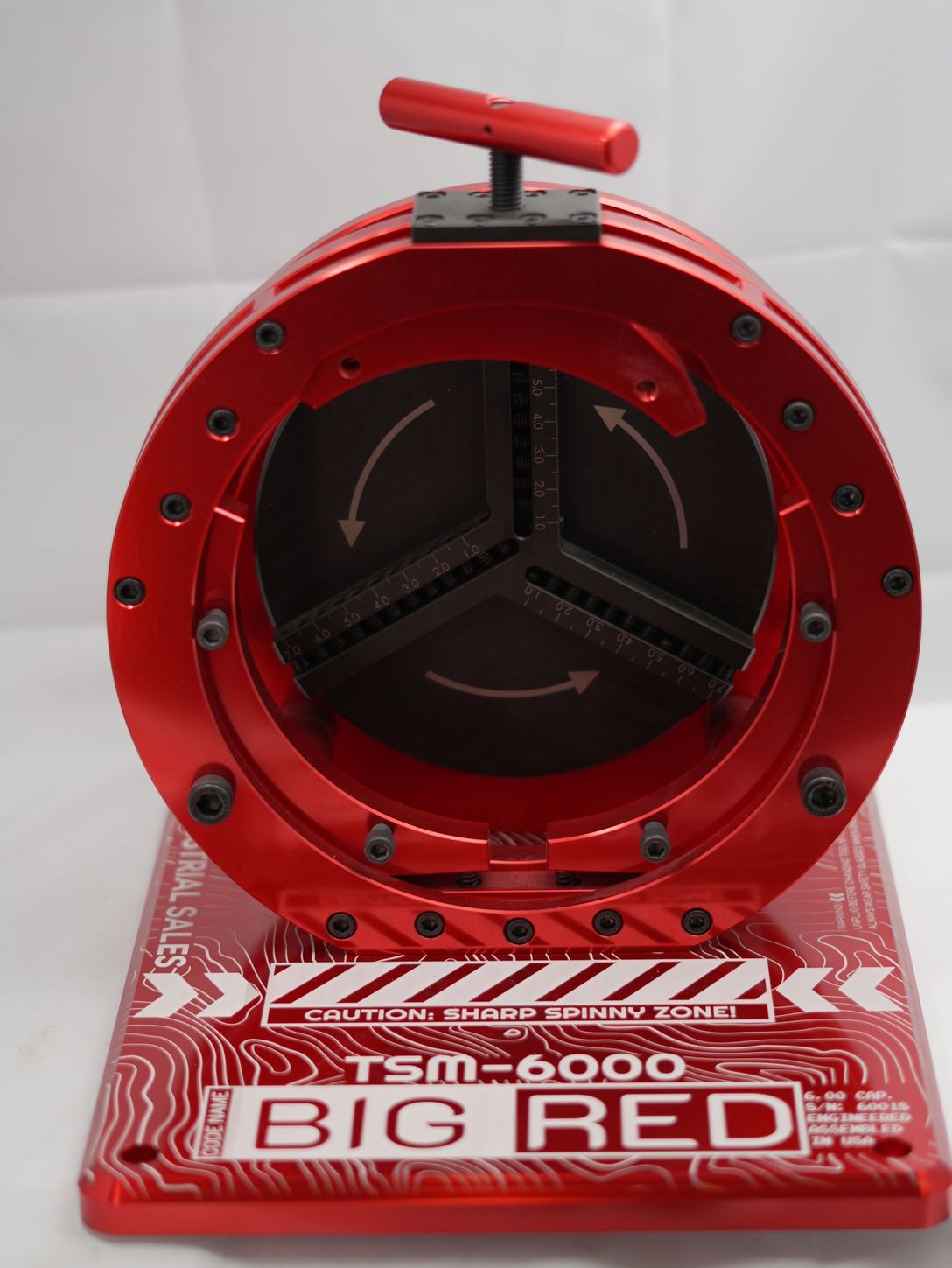

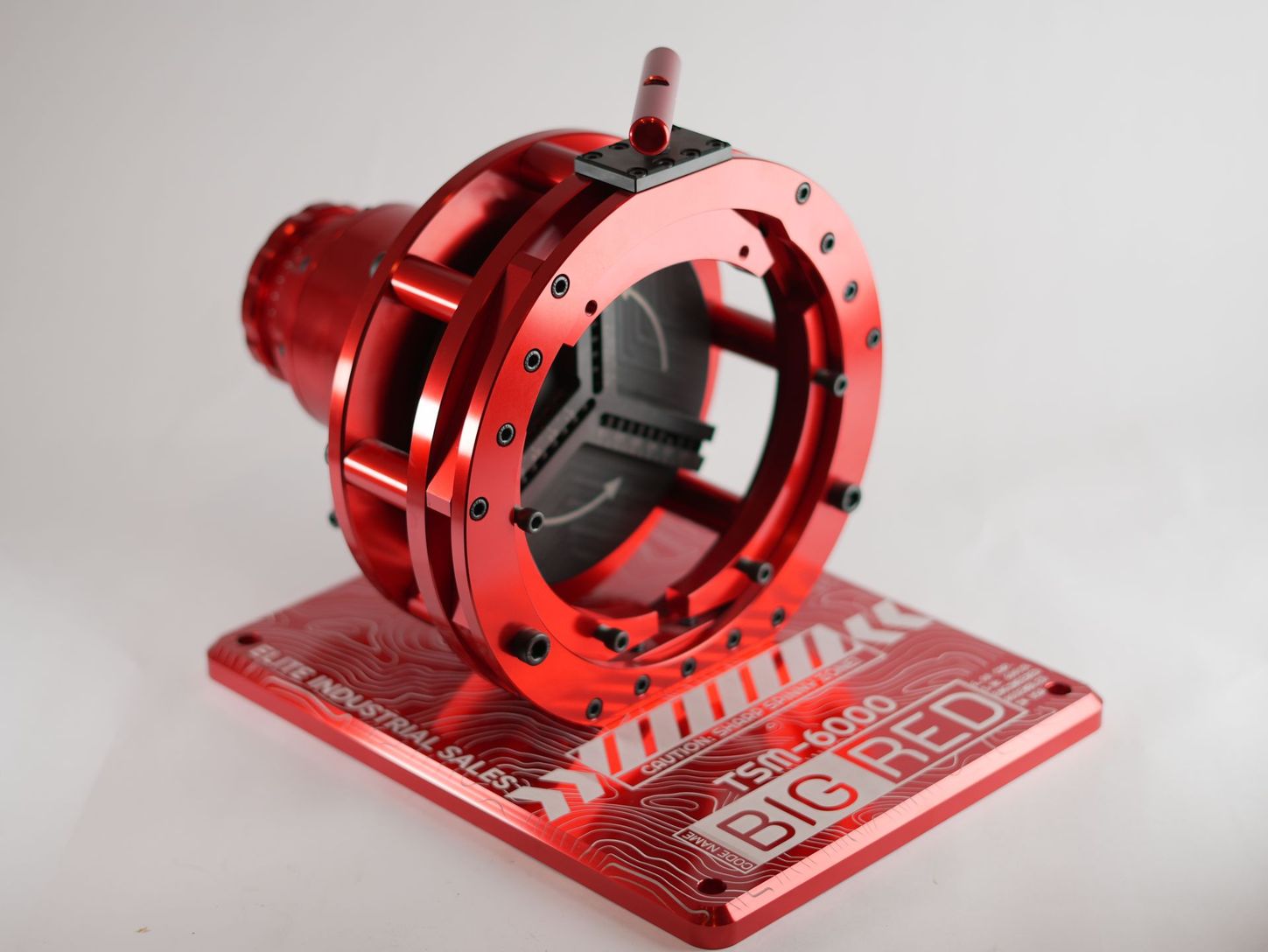

TSM-6000 BIG RED 6" Facing Machine
SKU: 102254MPN: TSM-6000-10
The TSM-6000 is our high capacity bench top facing and beveling tool that can handle tube and pipe from 1” to 6.625”
$9,450.00
UnitsIn Stock
Product Details
Meet Big Red! The TSM-6000 Facing Machine was designed for easy use in a rugged field approved design. It comes with a bench mount stand, but can still be lifted and carried by one person for easy storage.
This machine is also designed with a unique spring loaded lower collet system, which helps realign round tubing when tightening. The TSM-6000 is primarily for facing tubing and pipe, but it can also bevel and face at the same time. Features:
| Specification | Details |
|---|---|
| Size Range | Tube: 1” to 6.625” OD 25.4mm-168.3mm |
| Pipe Capacity | 1”-6” Nominal pipe size |
| Drive System | Worm gear drive; rugged two-speed design, corded drill 110v or 220v |
| Materials | Cuts Carbon steel, aluminum, Stainless steel, Nickel alloys, Copper, most plastics |
| Wall Thickness | Up to 0.250” In Carbon steel or 0.180” in Nickel alloys |
| Tool Bits | TB-1506-LC, TB-1046, TB-1050 (heavy wall) |

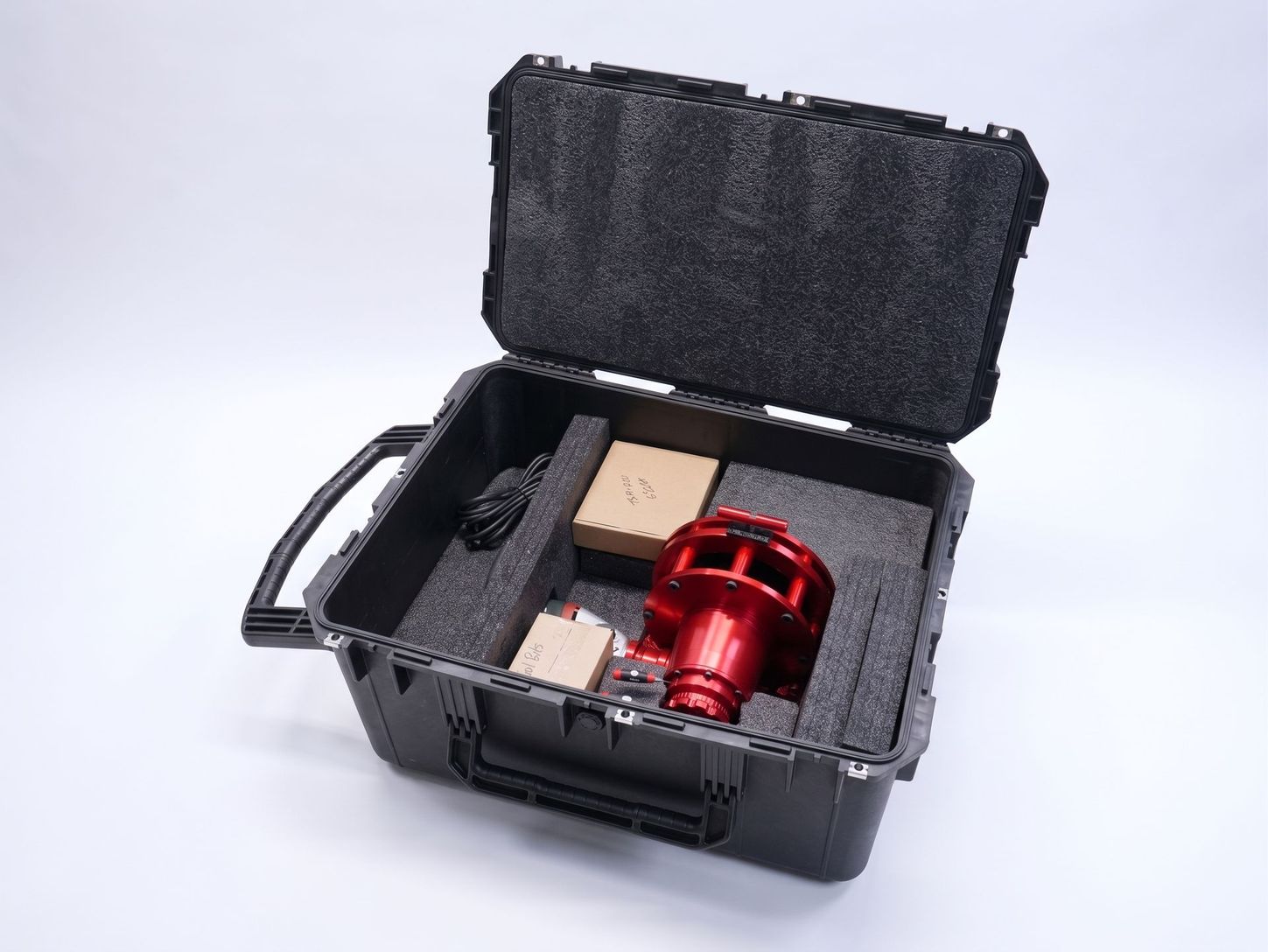

| Includes | Bench stand, complimentary facing bits, super slick custom art job |
Compatibility
| Facing Tool Model |
|---|
| TSM-6000 |
Specifications
| SKU | 102254 |
|---|---|
| MPN | TSM-6000-10 |
TSM-6000 Collets
