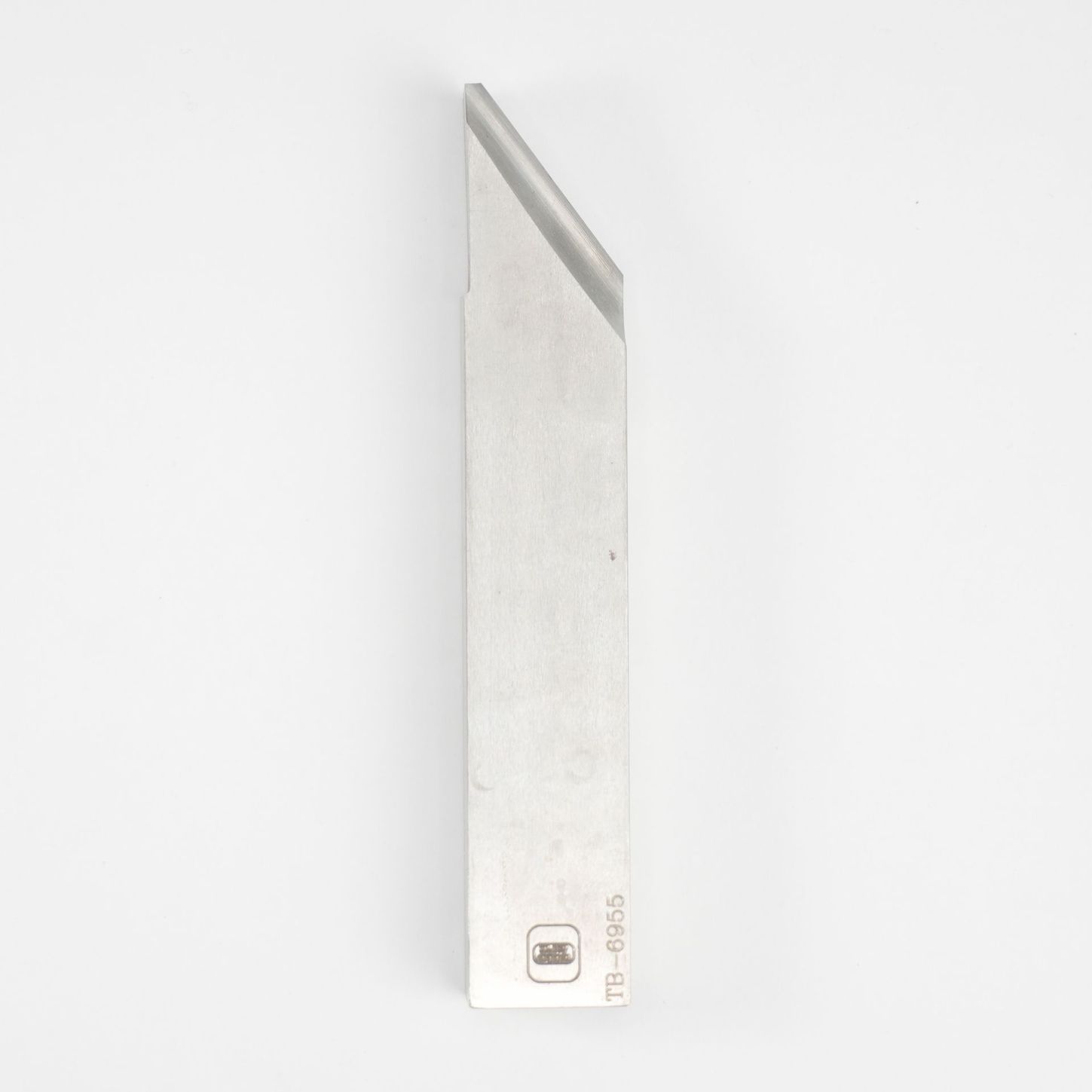

BevelPro 37.5° Left Hand, Split Frame | TB-6955

SKU: 101188MPN: TB-6955

The BevelPro 37.5° Left Hand, Split Frame (TB-6955) is a 37.5° beveling bit. It’s made for split-frame (clamshell) pipe cutting and beveling machines that take a 0.787” x 0.472” (20 x 12 mm) tool bit, 4.5” long. Made from M42 tool steel hardened to HRC 68 and 100% Made in the USA.

$95.00
Each
Out of Stock
remove
add

Product Details

BevelPro 37.5° Left Hand, Split Frame Bevel Bit (TB-6955)

The BevelPro 37.5° Left Hand, Split Frame (TB-6955) is a 37.5° beveling bit. It’s made for split-frame (clamshell) pipe cutting and beveling machines that take a 0.787” x 0.472” (20 x 12 mm) tool bit, 4.5” long. Made from M42 tool steel hardened to HRC 68 and 100% Made in the USA.

Features to Notice

  1. 37.5°: A clean, repeatable weld prep in one pass.
  2. Left hand: Order the hand that matches your machine’s tool block.
  3. M42 hardened to HRC 68: Holds its edge longer than standard high-speed steel.
  4. Made to our print: Every bit is ground to the same Donut Tools drawing, so replacements cut the same as the original.

Specs

Specification Details
Part Number TB-6955
Type Bevel
Angle 37.5°
Hand Left hand
Body Size 4.500” x 0.787” x 0.472”
Material M42 tool steel, HRC 68
Made In USA

Fits These Machines

It’s made for split-frame (clamshell) pipe cutting and beveling machines that take a 0.787” x 0.472” (20 x 12 mm) tool bit, 4.5” long. Not sure it’s the right bit? Send us your machine model, the old bit’s part number or a photo of it, and we’ll confirm the fit before you order.

The Split-Frame Bit Family

Bit Type / Angle Body
BevelPro 37.5° Double Bevel, Split Frame (TB-6951) 37.5° double bevel 4.500” x 0.787” x 0.472”
BevelPro 30° Right Hand, Split Frame (TB-6952) 30° 4.500” x 0.787” x 0.472”
BevelPro 37.5° Right Hand, Split Frame (TB-6953) 37.5° 4.500” x 0.787” x 0.472”
BevelPro 37.5° Left Hand, Split Frame (TB-6955) (this bit) 37.5° 4.500” x 0.787” x 0.472”
SeverPro Right Hand, Split Frame (TB-6958) Sever, 0.126” cut width 4.500” x 0.787” x 0.472”

Donut Tools 100% Perfect Fit Guarantee

We engineer all our tool bits to meet and exceed OEM standards. If you encounter any issues with fit or function, we’ll offer a full, no-hassle refund.

Specifications

SKU101188
MPNTB-6955
Material TypeTool Steel
