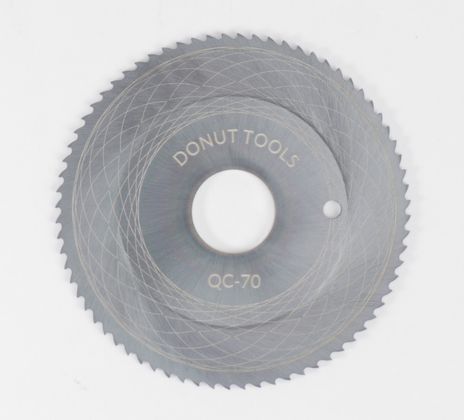

QC-70 Saw Blade

Name: QC-70 Saw Blade
SKU: 100916
Price: 34.00 USD
Availability: InStock

SKU: 100916MPN: QC-70OEM Part #s: LS6872OT790.048.472OT792.048.472

The QC-70 is a 72-Tooth M35 Cobalt orbital saw blade (68mm diameter) featuring a premium AlTiN (Aluminum Titanium Nitride) coating. Engineered for dry cutting high-purity 316 stainless and sanitary tubing, the AlTiN coating provides a thermal barrier that prevents work-hardening. 100% compatible with Orbitalum GF/GFX, Axxair, and George Fischer machines.

$34.00

Units

In Stock

Quantity

remove

add

Product Details

QC-70 AlTiN Coated Orbital Saw Blade (72T)

Extreme Heat Resistance for Dry Cutting 316 Stainless & Sanitary Tubing

The QC-70 is engineered for the toughest industrial applications. While standard coatings struggle with the heat of 316 Stainless Steel, the QC-70 features a premium AlTiN (Aluminum Titanium Nitride) coating. This “dark” coating is specifically designed to thrive in high-heat environments, making it the ideal choice for orbital saws running at low RPMs with minimal lubrication.

Key Performance Advantages:

AlTiN Thermal Barrier: The AlTiN coating allows the blade to withstand temperatures up to 900°C (1650°F). During the cut, the coating forms a protective aluminum oxide layer that keeps heat in the chip and out of the tool.
Premium M35 Cobalt Steel: Built with 5% Cobalt to ensure maximum “red hardness” and edge retention under heavy workloads.
Reduced Friction & Chip Welding: The high surface hardness of AlTiN prevents 316 stainless chips from “welding” to the tooth gullets, ensuring a cleaner cut and longer tool life.
Extended Blade Reach: The 68mm diameter provides more usable material than standard 63mm blades, allowing for more resharpenings and a significantly lower cost-per-cut.

Technical Specifications:

Specification	Details
Diameter	68 mm (2.68”)
Tooth Count	72 Teeth
Material	M35 High-Speed Steel (5% Cobalt)
Coating	AlTiN (Aluminum Titanium Nitride)
Hardness	64–66 HRC
Bore / Arbor	16 mm with Offset Drive Pin Hole
Wall Thickness	1.2 mm – 3.0 mm (.047” – .118”)

100% Compatibility & Direct OEM Replacement:

The QC-70 is a direct “plug-and-play” replacement for the following OEM part numbers: * Orbitalum / GF: 790.042.064, 790.041.035, 790.041.034, 790.042.049, 790.042.159, 790.048.072 * Axxair: LS6872 * George Fischer: OT790.048.472, OT792.048.472

Fits Machines: Orbitalum GF 4, GFX 3.0, GFX 6.6, Axxair CC121, CC171, CC221, and all George Fischer orbital saws with a 16mm arbor.
