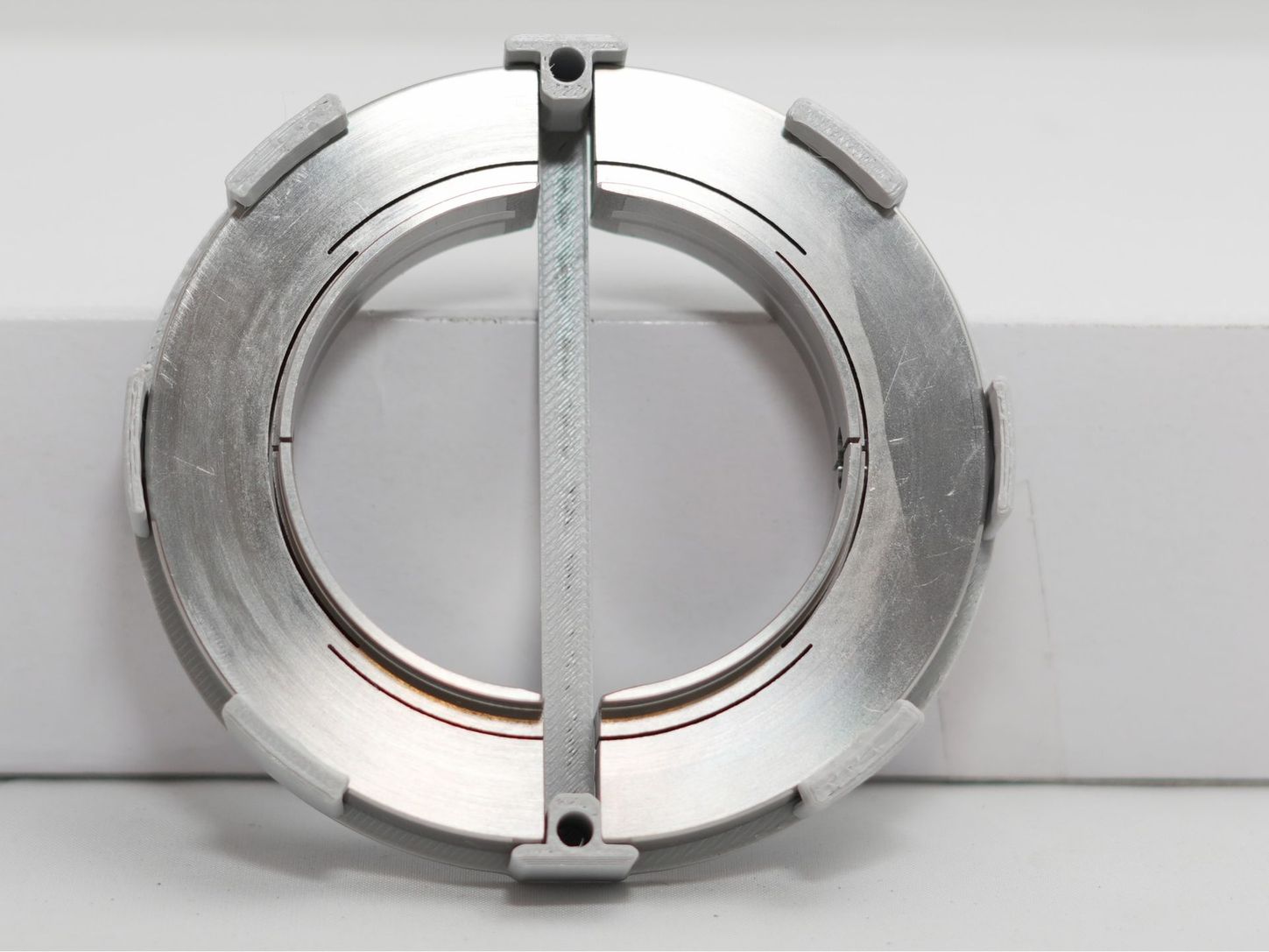

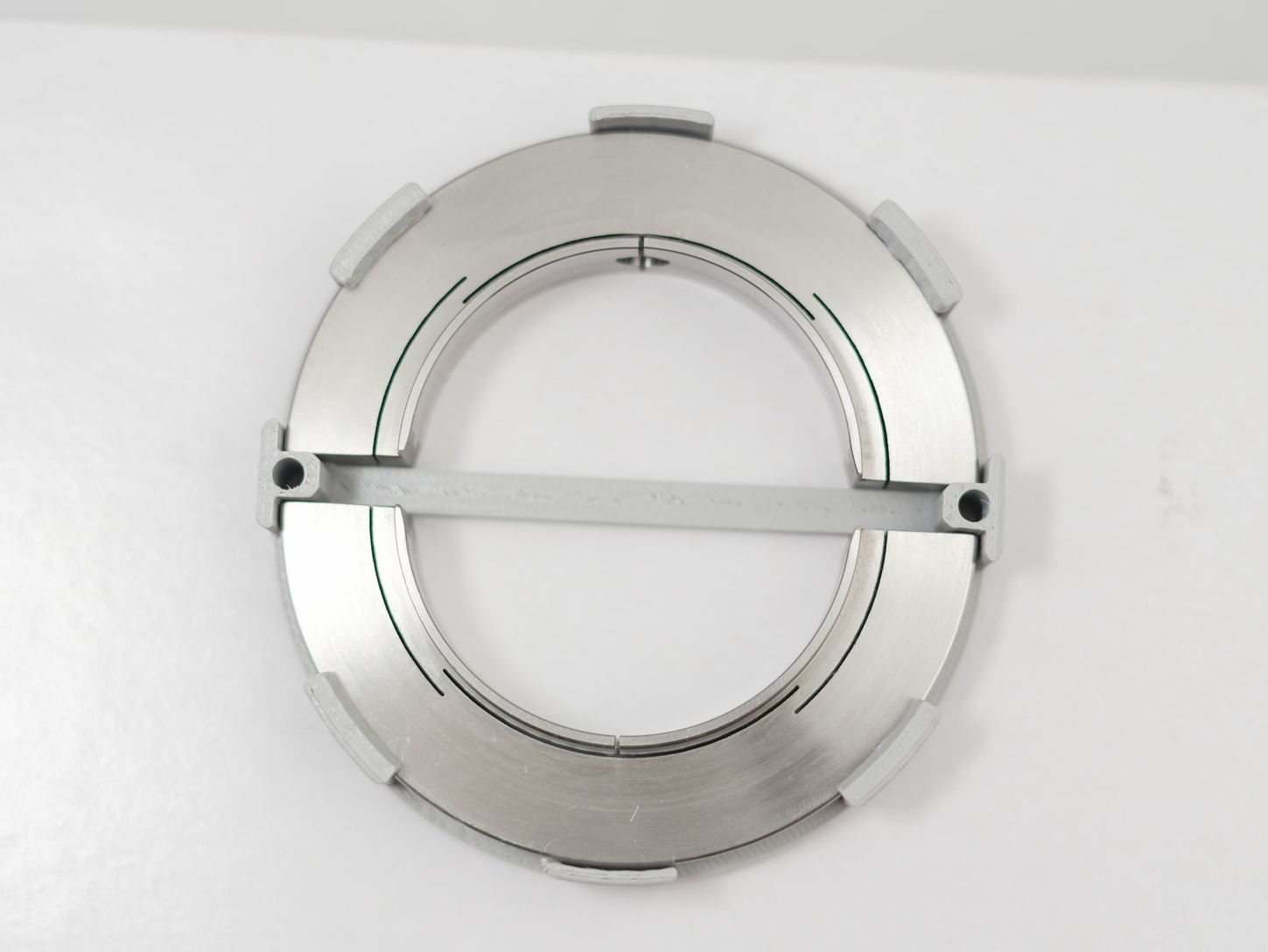

1-1/2" Pipe Collet for AMI 9-2500 Weld Head

SKU: 100247MPN: 2503-1.5P

1-½” pipe collets for the AMI 9-2500 weld head, sized for 1-½” pipe, 1.900” (48.3 mm) OD.

Made from 17-4 PH stainless steel with slightly undersized bores and EDM “spring” cuts for a better grip on slightly out-of-round tube. Sold as a set.

$395.00
Each
In Stock
remove
add

Product Details

1-½” Pipe Collet for AMI 9-2500 Weld Head (2503-1.5P)

Donut Tools offers a large lineup of aftermarket collets for the AMI 9-2500 orbital weld head. This set holds 1-½” pipe, 1.900” (48.3 mm) OD.

Why Donut Tools Collets

We have been manufacturing OEM-compatible collets for over 35 years. We focus on high-quality collets, clamps and inserts, no matter the brand. We design, engineer and inspect all our collets in our Los Angeles facility, and we’re willing to go the extra mile.

Features to Notice

  1. 17-4 PH stainless steel: Hardened 17-4 PH stainless for better durability than aluminum collets.
  2. EDM spring cuts: Compliant EDM cuts give a better grip on the tube, including slightly out-of-round tube. The bore is held to a precise ±0.001” tolerance, and each collet is designed to fit both the weld head and the tube.
  3. Sold as set One order is one set (two semi circles). A weld head needs two sets, one for each side of the weld head.

Specs

Specification Details
Fits AMI (Arc Machines Inc) 9-2500 orbital weld head
Pipe Size 1-½” NPS (1.900” / 48.3 mm OD)
Collet Type Pipe
Collet Material 17-4 PH stainless steel
Bore Tolerance ±0.001” with compliant EDM spring cuts
Collet Width 0.625” overall; main body 0.323”
Collet OD 3.000”
Sold As Set (two semi circles); a weld head needs two sets, one for each side of the weld head
Part Number 2503-1.5P

FAQ

Will it fit 1.5” tube? No. This collet fits 1-½” pipe, which has a 1.900” outside diameter. For 1.5” tube, use our 1.5” tube collet.

Do I need one set or two? Two sets for a complete weld head setup, one set for each side of the weld head.

All 9-2500 Collets

Donut Tools 100% Perfect Fit Guarantee

We engineer all our collets to meet and exceed OEM standards, and they’re guaranteed to fit the Arc Machines Inc. (AMI) 9-2500 weld head. If you encounter any issues with fit or function, we’ll offer a full, no-hassle refund.

*Donut Tools is an independent supplier of aftermarket alternative parts. We are not affiliated with, endorsed by, or associated in any way with OEM manufacturers.

Compatibility

Weld Head ModelBrand
AMI 9-2500AMI

Specifications

SKU100247
MPN2503-1.5P
Material Type17-4 PH Stainless Steel
Pipe Collet Size1-1/2"
Collet TypePipe
