The Secret to Flawless Orbital Welds: Why Pre-Ground 2% Ceriated Tungsten is Essential

Introduction:

Hey there, Donut Tools community! Today we’re diving deep into a seemingly small detail that is absolutely critical for the world of orbital welding: the tungsten electrode. Specifically, we’re going to talk about the unsung hero of the automated GTAW process: pre-ground 2% ceriated tungsten.

For those of you in the orbital welding world, you know that consistency, precision, and repeatability are not just nice-to-haves—they’re non-negotiable. Every variable must be controlled to ensure a perfect, repeatable weld. And that’s exactly where the quality of your tungsten becomes a major factor.

Why 2% Ceriated Tungsten is the Orbital Welder’s Choice

Before we talk about the “pre-ground” part, let’s establish why we’ve chosen to offer 2% ceriated tungsten. Ceriated tungsten, easily identified by its gray color band, is widely regarded as one of the best all-around performers for automated TIG welding applications.

Here’s why it’s so well-suited for orbital welding:

• Exceptional Arc Starting: Orbital welding often involves numerous arc starts and stops. Ceriated tungsten requires a lower amperage to ignite the arc, which is ideal for the precise, controlled starts needed in automated systems.

• Superior Arc Stability: A stable arc is the cornerstone of a perfect orbital weld. Ceriated tungsten provides a very consistent and focused arc, reducing the chances of arc wandering and ensuring a uniform weld bead as the head orbits around the joint.

• Longer Service Life: In high-production environments, every minute counts. Ceriated tungsten has a higher resistance to contamination and “balling,” which means your electrodes stay sharp and effective for a longer period, reducing downtime for replacements.

• Versatility: This material performs exceptionally well on both DC and AC applications, making it suitable for welding a wide range of materials commonly used in orbital welding, such as stainless steel, carbon steel, and various alloys.

The Indisputable Case for Pre-Ground Tungsten in Orbital Welding

Now, for the key to unlocking the full potential of your orbital welding machine: pre-ground electrodes from Donut Tools. In manual welding, a poor grind might lead to a messy weld. In orbital welding, it can lead to catastrophic failure.

Here’s why pre-ground tungsten is not just a convenience, but an essential component for high-quality orbital welding:

1. Unmatched Consistency and Repeatability:

The success of orbital welding hinges on a precisely controlled process. The geometry of your tungsten tip—the angle of the grind and the finish—directly impacts the shape of your arc, the penetration, and the final weld bead. Manually grinding each electrode introduces a variable that can never be fully eliminated.

Our pre-ground 2% ceriated tungsten is precision-machined to exacting tolerances. This guarantees that every electrode you use has the exact same tip geometry, ensuring a consistent and repeatable weld every single time. This is critical for meeting stringent industry standards and for producing reliable, high-integrity welds.

2. Maximize Uptime and Productivity:

In a production setting, time spent manually grinding electrodes is time not spent welding. With pre-ground electrodes, you can simply unbox them, load them into your weld head, and get back to producing welds. This eliminates a time-consuming and often inconsistent step, drastically increasing your overall productivity.

3. Eliminate the Risk of Contamination and Rework:

Manual grinding can leave microscopic burrs on the tungsten tip, which can lead to arc instability or, worse, tungsten inclusions in the weld. These defects are unacceptable in critical applications like those in the pharmaceutical, food and beverage, or semiconductor industries. Our automated grinding process produces a flawless, polished finish, eliminating these risks entirely.

4. Optimized for Your Equipment:

Orbital weld heads are designed to work with electrodes of a specific length and tip profile. Our pre-ground tungsten is not only perfectly ground but also cut to the ideal length for common orbital welding heads, ensuring a perfect fit and consistent arc gap. This takes another variable out of the equation and simplifies your setup process.

Conclusion:

When every weld must be perfect, you can’t afford to leave anything to chance. At Donut Tools, our pre-ground 2% ceriated tungsten is the perfect companion for your orbital welding system. By providing a consistent, high-quality, and reliable electrode, we’re helping you achieve flawless, repeatable welds with maximum efficiency.

Stop wasting time on manual grinding and start focusing on what truly matters: producing high-quality, consistent results.

Shop our full range of pre-ground 2% ceriated tungsten electrodes!

Finally, have you every been curious what the numbers in tungsten mean? Here you go:

1. T = Tungsten
2. C = Ceriated
3. Diameter of Tungsten:
   04 = 0.040” (1mm)
   06 = 1/16”, 0.0625” (1.58mm)
   09 = 3/32”, 0.09375” (2.38mm)
4. Length (inches x 1000)
5. Tip flat diameter: .010”, .020”, .030”, .040”

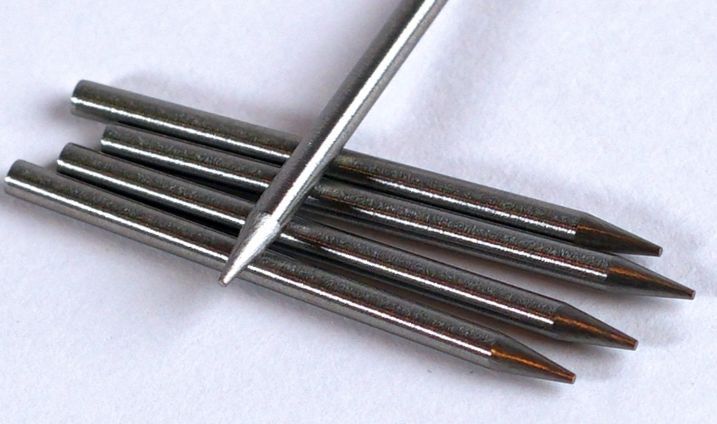

EXAMPLE: TC-06-1040-03 = Tungsten Ceriated, 0.0625” Diameter, 1.040” in Length, .030” tip diameter

Also check out our Tungsten Electrode Selector! Stop looking for that piece of paper that the tungsten chart was printed on 10 years ago. Simply select your Weld Head and Tube Size and get the correct size tungsten. Link opens to our old website (for now).

Thanks and have a great day!

Ky-Won

```
